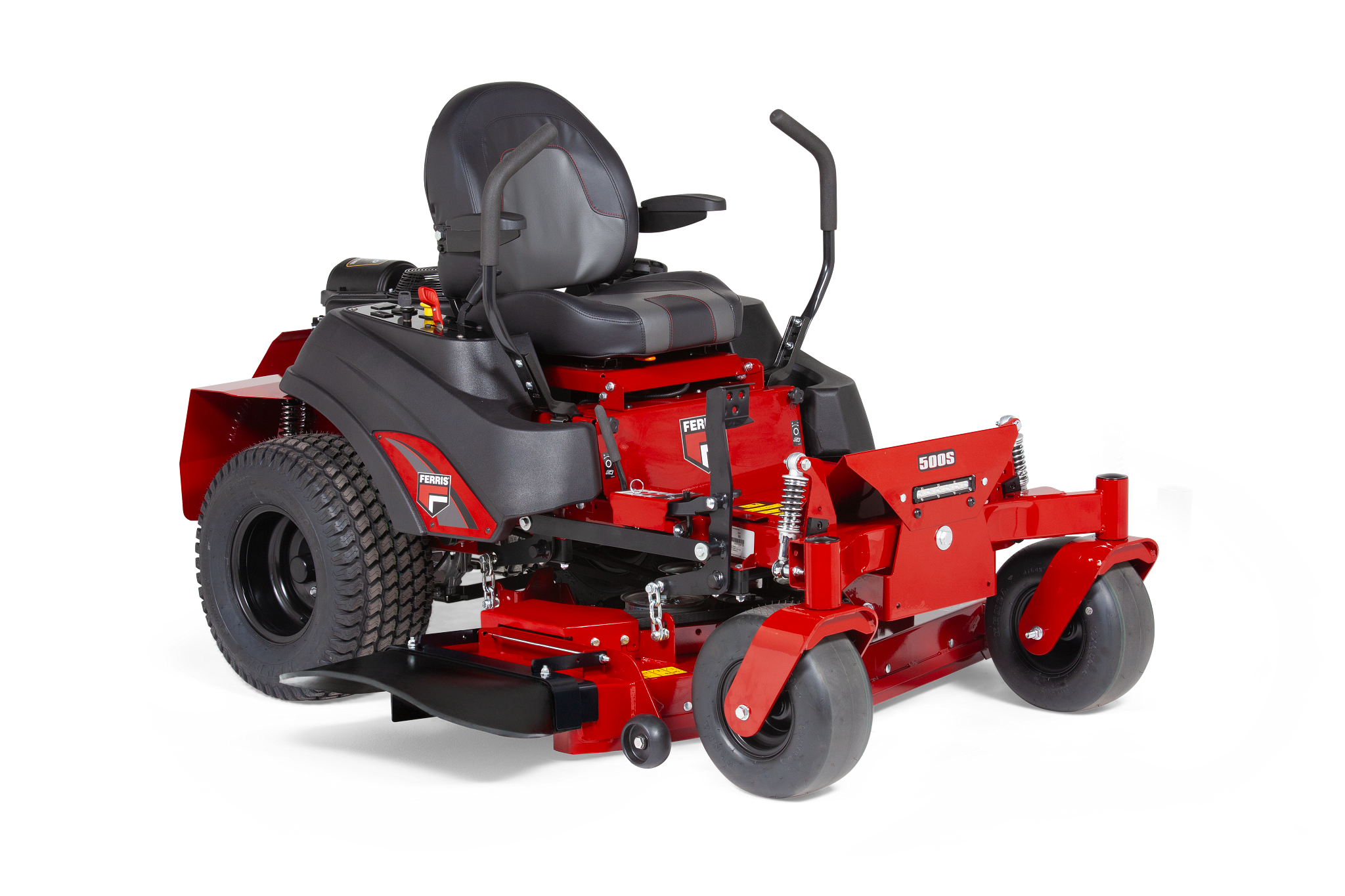

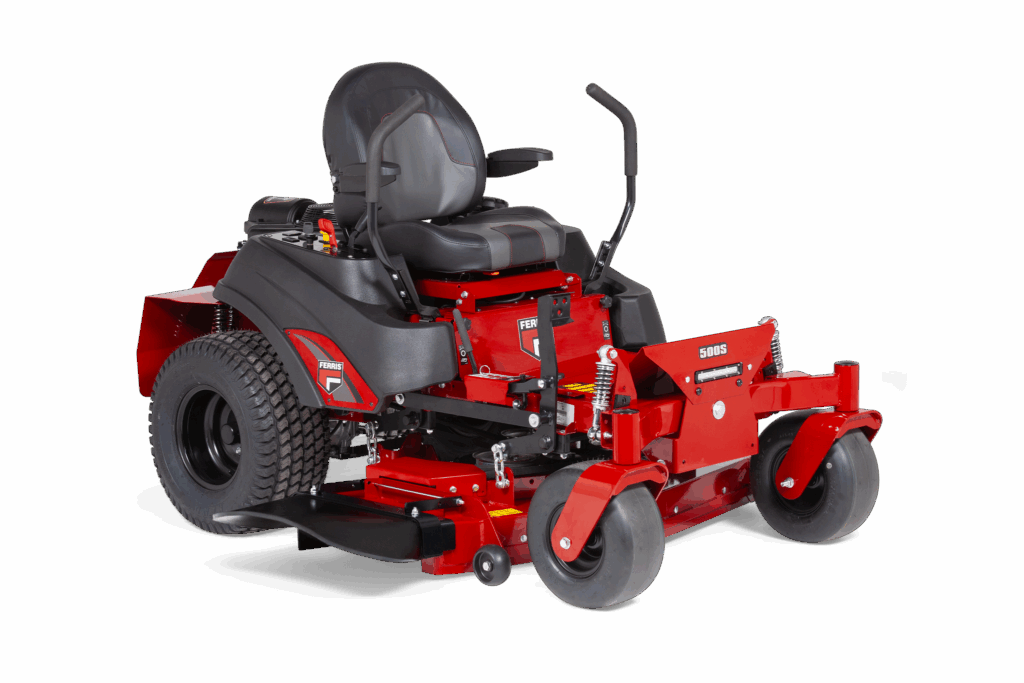

500S – The compact ride-on
The Ferris 500S is one of the newest members of the Ferris zero turn line up.
Featuring our patented suspension technology, heavy-duty Hydro-Gear® drive system, a 25hp engine purpose built for a zero-turn application and mowing speeds up to 13 km/h.
This mower is full of features to provide maximum productivity including the brand new, patent pending TR3PLE deck, featuring three discharge configurations as well as a 50/50 mulching and rear discharge combi configuration.
The 500S is perfect for the light commercial market, capable of tackling tight places, providing maximum manoeuvrability and productivity.
500S Features
Tr3ple Deck
Multifunctional patent-pending deck with four discharge configurations including Side Discharge, Rear Discharge, Mulching and Mulching/Rear Discharge combi configuration, giving you the perfect cut for every situation.
Suspension System

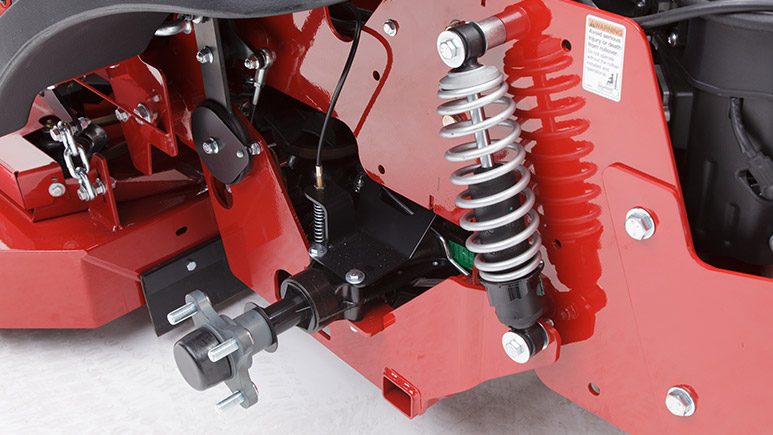

Suspension system with independent rear coil-over-shocks (shown) and pivoting front axle with front ride dampening shocks.
Hydro-Gear® ZT-3100
Fully serviceable dual commercial Hydro-Gear® ZT-3100 transaxles are designed for high performance and durability.
Aluminium Spindles
Features top greaseable aluminium spindles for longer usable life.
Commercial Turf Series™
Briggs & Stratton Commercial Turf Series™ petrol engine features a full pressure lubrication system, heavy duty starting system & MCR and Cooling Fins inspection panels.
Steering System
A patented suspension and steering system combined to provide a comfortable ride with exceptionally smooth steering performance.
Side Control Panel
Separate parking brake lever operated from side panel for additional control.
Specification
5902171
| Engine | |
|---|---|
| Make | Briggs & Stratton – Petrol |
| Model | Commercial SeriesTM |
| Horsepower | 25 HP |
| Cylinders / Displacement | 2 Cylinders V-Twin / 724 cc |
| Cooling | Air cooled |
| PTO | Electric PTO clutch |
| Starting | Electric |
| Fuel Capacity | 23 Litres |
| Mower | |
| Cutting width (cm/inch) | 122 cm / 48” |
| Deck Configuration | “TR3PLE”: side discharge, rear discharge, mulch, mulching blades |
| Cutting Height (cm) | 38 – 114 mm |
| Deck Construction | 3,6 mm fabricated construction, double top deck, double reinforced side skirts, overlap welded corners |
| Mower Spindles | Cast aluminium 135mm; 20mm shaft |
| Deck lift system | Foot pedal, spring assisted |
| Suspension & Drive Train | |
| Suspension | Rear wheel suspension, pivoting front axle with front ride dampening shocks |
| Transmission | Independent Hydro-Gear® ZT-3100™ transaxles |
| Drive Axles | 25,4 mm Tapered with 4-bolt wheel hubs |
| Drive Tyres (inch) | 22 x 10.00 – 10 (4ply) Pneumatic tire with turf tread |
| Caster Tyres (inch) | 13 x 6.50 – 6 (4ply) Pneumatic tire with turf tread |
| Noise and Vibration | |
| HAV | < 2.5 |
| WBV | < 0.5 |
| Sound dB(A) | 105 |
| Ground Speed | |
| Speed-fwd. (km/h) | 0 – 13.6 km/h |
| Speed-rev. (km/h) | 0 – 6,4 km/h |
| Dimensions | |
| Overall length (cm) | 192.5 |
| Overall width (cm) | 124 |
| Dry weight (Kgs) | 395 |
| Operator Control & Comfort Systems | |
| Roll-Over Protection Structure | N/A |
| Instrumentation | Fuel level gauge, hour meter |
| Controls | Forward and reverse control levers, adjustable in height and length, seat activated engine kill, clutch safety switch |
| Parking Brake / Safety Circuit | Integrated transaxle brake, neutral and parking brake safety circuit |
| Warranty | |
| Engine | 3-Year Manufacturer’s Limited Warranty |
| Transmission | 2-Year Manufacturer’s Limited Warranty |
| Balance of machine | 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, Tires, Brake Pads, Battery, Blades: 90 days |
Accessories
- Service Jack Stand
- High Lift Blades
- Trailer Hitch Kit
