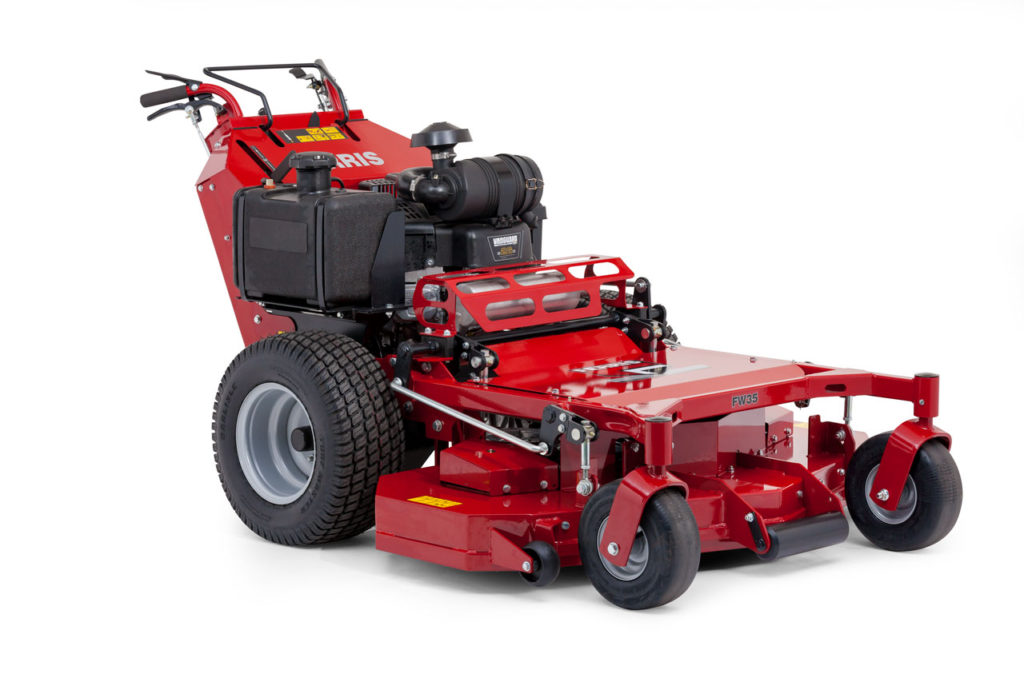

FW45: the walk-behind for demanding workloads
The FW45 dual hydrostatic walk-behind mower was built from the ground up to meet the demands of professional mowing crews. The new design gives this mower smoother and more user-friendly operation. Featuring a cruise control bar, independent retraction lever steering, thumb controlled speed override, foot operated return-to-neutral controls and a speed indicator. The super tough built, 6mm thick engine deck, offers a low centre point of gravity and a wide stance that result in unparalleled traction and stability.
FW45 Features

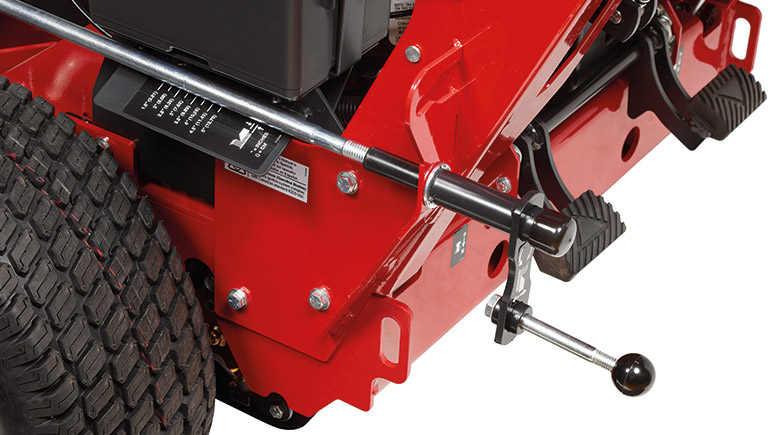

Easy Deck Adjustment
The deck is easily adjusted by the single-point quick adjust lever which can be locked away securely.

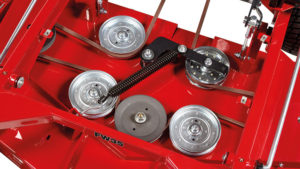

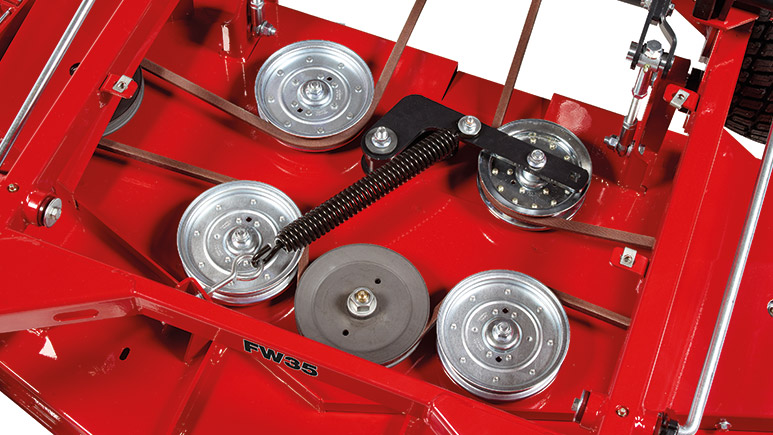

Even Belt Tension
Deck drive belt system is designed to provide even belt tension which improves the life of the belt and reduces maintenance.

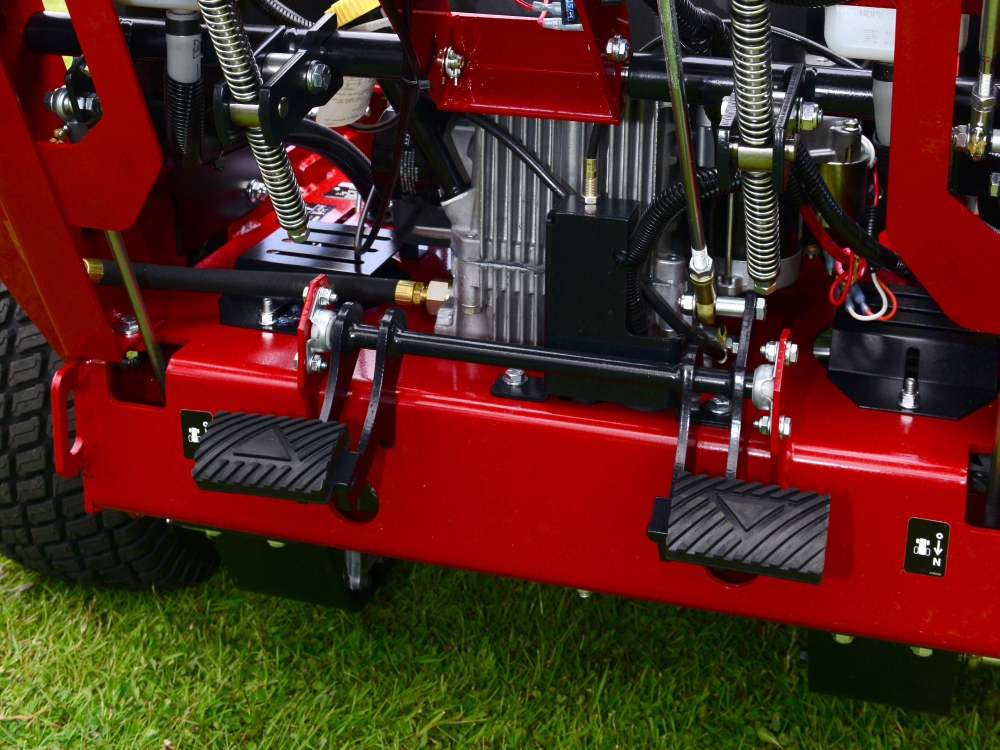

Centralized Foot Control

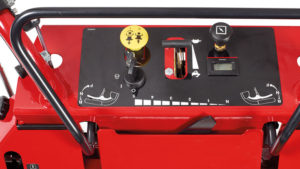

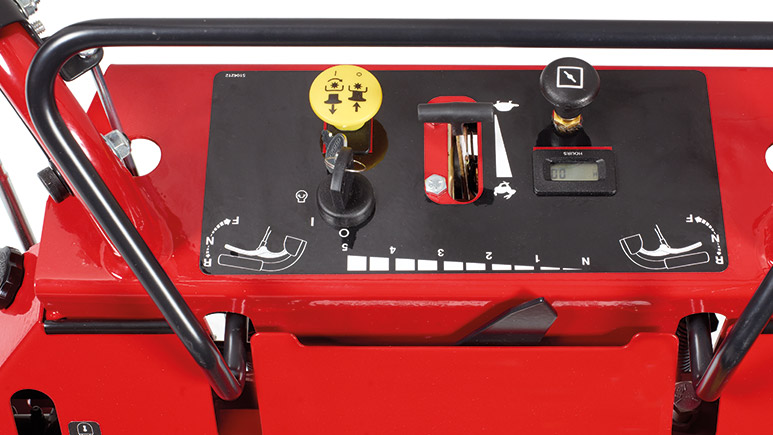

New centralised foot control for neutral position provides the operator with a more natural control. The neutral position is identified on the speed indicator on the dash.

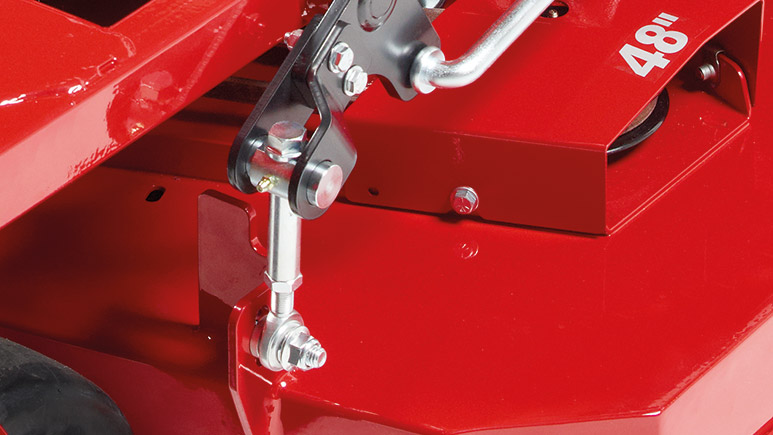

Improved Deck Mounting
The new mower deck mounting system provides easier deck levelling, improved flexibility over terrain, and more durable wear points for reduced maintenance.
No Need to Restart
New PTO (blade) switch allows the operator to stop the mower blades simply by putting the mower in the neutral position and releasing the operator presence handles, while the engine continues to run..

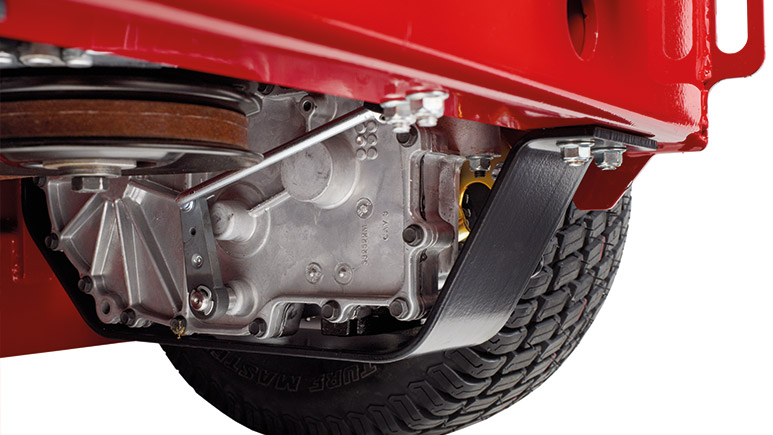

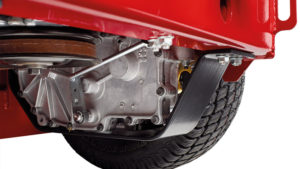

Transmission guards
Narrow transmission guards reduce debris built up to improve airflow and allow for access to the oil filter for maintenance
FW45 Specification
FW35BV2648CE
| Engine | |
|---|---|
| Make | Vanguard – Petrol |
| Model | 810cc |
| Horsepower | 26 HP |
| Cylinders / Displacement | 2 Cylinders V-Twin / 810 cc |
| Cooling | Air cooled |
| PTO | Electric PTO clutch |
| Starting | Electric |
| Fuel Capacity | 19 Litres |
| Mower | |
| Cutting width (cm/inch) | 122 cm / 48” Rear Discharge |
| Deck Configuration | Rear discharge/mulching insert and mulching blades |
| Cutting Height (cm) | 3,8 – 12,0 cm |
| Deck Construction | 3.4 mm fabricated construction, full width double top deck, 6,4 mm scuff guards, 9.5mm leading edge, overlap welded corners |
| Mower Spindles | Cast aluminium 133 mm; 25,4 mm shaft |
| Deck lift system | Central height adjustment with single hand wheel |
| Suspension & Drive Train | |
| Suspension | n.a. |
| Transmission | Independent Hydro-Gear® ZT-3100™ transaxles |
| Drive Axles | 25,4 mm Tapered with 4-bolt flange |
| Drive Tyres (inch) | 20 x 7.00 – 10 (4 ply) |
| Caster Tyres (inch) | 11 x 4.00 – 5 (4 ply) |
| Noise and Vibration | |
| HAV | < 2.5 |
| WBV | N/A |
| Sound dB(A) | 105 |
| Ground Speed | |
| Speed-fwd. (km/h) | 0 – 11 km/h |
| Speed-rev. (km/h) | 0 – 4,5 km/h |
| Dimensions | |
| Overall length (cm) | 200 |
| Overall width (cm) | 125 |
| Dry weight (Kgs) | 380 |
| Operator Control & Comfort Systems | |
| Roll-Over Protection Structure | n.a. |
| Instrumentation | Speed indicator, hour meter |
| Controls | Operator presence,cruise control bar, independent forward and reverse levers, foot activated neutral |
| Parking Brake / Safety Circuit | Integrated transaxle brake |
| Warranty | |
| Engine | 3-Year Manufacturer’s Limited Warranty |
| Transmission | 2-Year Manufacturer’s Limited Warranty |
| Balance of machine | 2-Year Limited Warranty commercial use. Unlimited hours, front to rear, parts and labour. Belts, Tires, Brake Pads, Battery, Blades: 90 days |
FW45 Specification
FW35BV2652RDCE
| Engine | |
|---|---|
| Make | Vanguard – Petrol |
| Model | 810cc |
| Horsepower | 26 HP |
| Cylinders / Displacement | 2 Cylinders V-Twin / 810 cc |
| Cooling | Air cooled |
| PTO | Electric PTO clutch |
| Starting | Electric |
| Fuel Capacity | 19 Litres |
| Mower | |
| Cutting width (cm/inch) | 132 cm / 52” Rear Discharge |
| Deck Configuration | Rear discharge/mulching insert and mulching blades |
| Cutting Height (cm) | 3,8 – 12 cm |
| Deck Construction | 3,4 mm fabricated construction, full width double top deck, 6,4 mm scuff guards, 9.5mm leading edge, overlap welded corners |
| Mower Spindles | Cast aluminium 133 mm; 25,4 mm shaft |
| Deck lift system | Central height adjustment with single hand wheel |
| Suspension & Drive Train | |
| Suspension | n.a. |
| Transmission | Independent Hydro-Gear® ZT-3100™ transaxles |
| Drive Axles | 25,4 mm Tapered with 4-bolt flange |
| Drive Tyres (inch) | 20 x 8.00 – 10 (4 ply) |
| Caster Tyres (inch) | 11 x 4.00 – 5 (4 ply) |
| Noise and Vibration | |
| HAV | < 2.5 |
| WBV | N/A |
| Sound dB(A) | 105 |
| Ground Speed | |
| Speed-fwd. (km/h) | 0 – 11 km/h |
| Speed-rev. (km/h) | 0 – 4,5 km/h |
| Dimensions | |
| Overall length (cm) | 200 |
| Overall width (cm) | 135 |
| Dry weight (Kgs) | 383 |
| Operator Control & Comfort Systems | |
| Roll-Over Protection Structure | n.a. |
| Instrumentation | Speed indicator, hour meter |
| Controls | Operator presence,cruise control bar, independent forward and reverse levers, foot activated neutral |
| Parking Brake / Safety Circuit | Integrated transaxle brake |
| Warranty | |
| Engine | 3-Year Manufacturer’s Limited Warranty |
| Transmission | 2-Year Manufacturer’s Limited Warranty |
| Balance of machine | 2-Year Limited Warranty commercial use. Unlimited hours, front to rear, parts and labour. Belts, Tires, Brake Pads, Battery, Blades: 90 days |
