IS®6200: the ultimate mowing machine
Looking for the ultimate workhorse that has an unprecedented level of productivity and is extremely comfortable to operate at the same time? Stop looking any further, you’ve found it! Its incredible engine power and highly versatile deck design will conquer the most challenging mowing jobs while our exclusive suspension technology reduces the effects of uneven terrain, allowing you to maintain mowing speed and increasing your productivity by getting the job done faster. Because, why decide between getting your work done faster or feeling good when you finish? Ferris got your back on both! With the IS®6200, we set the new industry benchmark for the ultimate riding and cutting machine.
IS®6200 Features

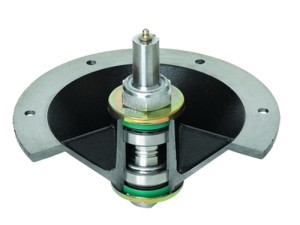

HerculesTM II cast-iron mower
spindles with oversized 62
mm industrial – double row –
angular contact ball bearings,
30,16 mm shaft and 257 mm
6-bolt flange design.
The iCD™ Cutting System
allows better airflow, superior
cut quality and complements
the innovation of the Ferris
line.
Dual coil-over-shock rear
suspension with dual cast-iron
suspension arms and front
independent adjustable coilover
shocks.
1699cc, 48.3-hp* Caterpillar
(model C1.7) Stage 5 diesel engine
is the best in its class.

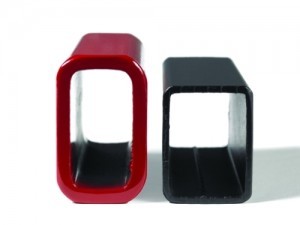

Ferris uses industry leading
6 mm thick frame.
The foot-operated hydraulic
deck lift system makes
raising and lowering the deck
effortless.
Specification for IS6200C48D72SRDCE
Dimensions
| Engine | ||
|---|---|---|
| Make | Caterpillar | |
| Model | C1.7 | |
| Horsepower | 48.3HP | |
| Cylinders / Displacement | 3 Cylinders in line /1.699 cc | |
| Cooling | Liquid Cooled | |
| PTO | Electric PTO clutch | |
| Starting | Electric | |
| Fuel Capacity | 51 Litres | |
| Mower | ||
| Cutting Width (cm /inch) | 183cm / 72″ Triple iCDTM |
|
| Deck Configuration | Configurable deck including: rear discharge, side discharge, mulching and mulching blades | |
| Cutting Height | 3.8 – 15.2 cm | |
| Deck Construction | 3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners | |
| Mower Spindles | Cast-iron 257 mm; 30,16 mm shaft | |
| Deck Lift System | Hydraulic | |
| Suspension & Drive Train | ||
| Suspension | 4-Wheel independent suspension | |
| Transmission | Independant Hydro-Gear® PW pumps and Parker TG0335 wheel motors with industrial oil filter and remote oil cooler | |
| Drive Axles | 31,75 mm Tapered with 5-bolt wheel hub | |
| Drive Tyres (inch) | 26 x 12.00 – 12 (4 ply) | |
| Castor Tyres (inch) | 13 x 6.50 – 6 (4 ply) | |
| Noise and Vibration | ||
| HAV | < 2.5 | |
| WBV | < 0.5 | |
| Sound dB(A) | 105 | |
| Ground Speed | ||
| Speed Fwd (km/h) | 0-20 km/h | |
| Speed Rev (km/h) | 0-10 km/h | |
| Overall Length | 229.5 | |
| Overall Width | 188.5 | |
| Dry Weight | 1158kg | |
| Operator Control & Comfort Systems | ||
| Roll-Over Protection Structure | Standard, foldable | |
| Instrumentation | Fuel level gauge in each tank. Multi-functional color display showing engine functions, machine functions, engine warnings and maintenance reminders | |
| Controls | Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit | |
| Parking Brake/Safety Circuit | Drum type | |
| Warranty | ||
| Engine | 2-Year Manufacturer’s Limited Warranty | |
| Transmission | 2-Year Manufacturer’s Limited Warranty | |
| Balance of Machine | 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Belts, Tires, Brake Pads, Battery, Blades: 90 days ‡ | |
IS®6200 Accessories
- Trailer hitch kit.
- Suspension seat kit.
- Flat free caster tyres.
